Stepper Motor Current Adjustment

Stepper Motor Current adjustment procedure

1. Remove the top Bar holding glass in place and carefully remove the glass
2. Remove the two square head screws under the marquee light

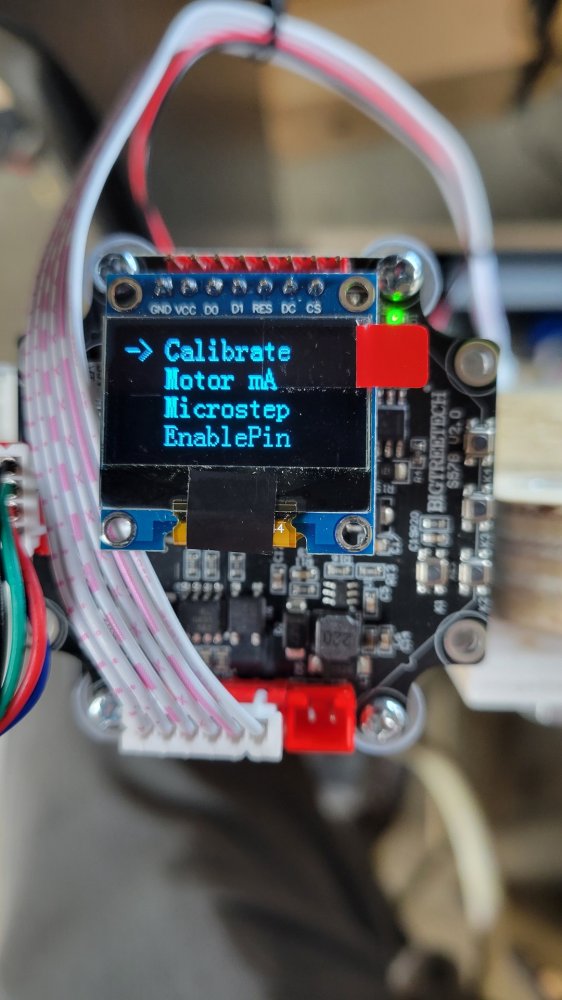

3. Pull top of the Playfield forward and insert OLED screen as shown and power on game

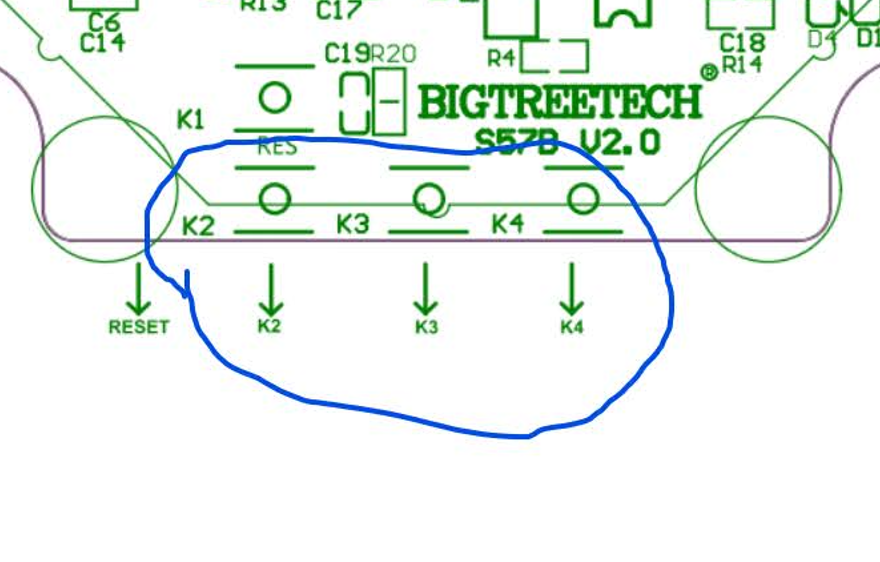

   # Press K3 for adjustment menu
4. Press K2 to select Motor mA then press K4 for sub menu

5. Press K2 to set the motor to 700 mA. The lower the number the more responsive the electronic clutch is. Press K4 to go back to the main menu.
6. Press K2 to select Exit, then Press K4 to exit the menu screen
7. Power down Game and Repeat for second motor
8. Make sure to oil drive screws and bar assembly regularly for smooth operation.
